Automatic Casting Line for High-Chrome Grinding Balls
Fully automated metal mold casting system delivering consistent hardness, dense microstructure, and stable output for large-scale grinding media production.
50,000
t/yr Capacity
±0.3%
Chemical Composition Consistency
60-65 HRC
Surface Hardness Range
24/7
Continuous Automated Operation
Line Specifications
| Parameter | Value | Notes |
|---|---|---|
| Ball Diameter Range | Dia. 20mm – 150mm | Customizable per customer mold |
| Casting Method | Metal mold gravity casting | Fully automatic pouring system |
| Chemical Composition Control | Cr 10%–28% (adjustable) | Per customer hardness/impact requirement |
| Hardness | 58–68 HRC (surface) | Tested per batch |
| Cooling System | Controlled air&water/mold cooling | Ensures uniform microstructure |
| Heat Treatment | PLC-controlled quench + temper furnace | Reduces micro-cracks, improves toughness |
| Daily Output | 150–200 tons/day | Depending on ball size |
| Automation Level | Fully automatic molding, pouring, demolding | Minimal manual intervention |
Core Equipment Components
A standalone fully automatic heat treatment line can also be customized separately according to customer requirements, independent of the full casting line.
Automatic Molding & Pouring System
Fully automated metal mold handling and pouring system that ensures precise casting temperature and consistent ball formation, minimizing porosity and dimensional variation.
Medium-Frequency Induction Furnace
High-efficiency melting furnace with precise temperature and chemical composition control, ensuring stable alloy quality for each production batch.
PLC-Controlled Quench & Temper Furnace
Automated heat treatment system that delivers uniform hardness and refined microstructure, improving wear resistance and impact toughness of the finished grinding balls.
Automatic Sorting & Packing Line
Post-production sorting by size and weight, followed by automated packaging to ensure consistent product quality before shipment.
Technical Highlights
High Consistency
Automated process controls minimize batch-to-batch variation in hardness and chemistry.
Low Breakage Rate
Optimized heat treatment reduces micro-cracking and premature ball breakage.
Scalable Output
Line capacity can be adjusted to meet high-volume mining and cement industry demand.
Quality Traceability
Every batch is recorded and traceable via internal QC and third-party lab testing.

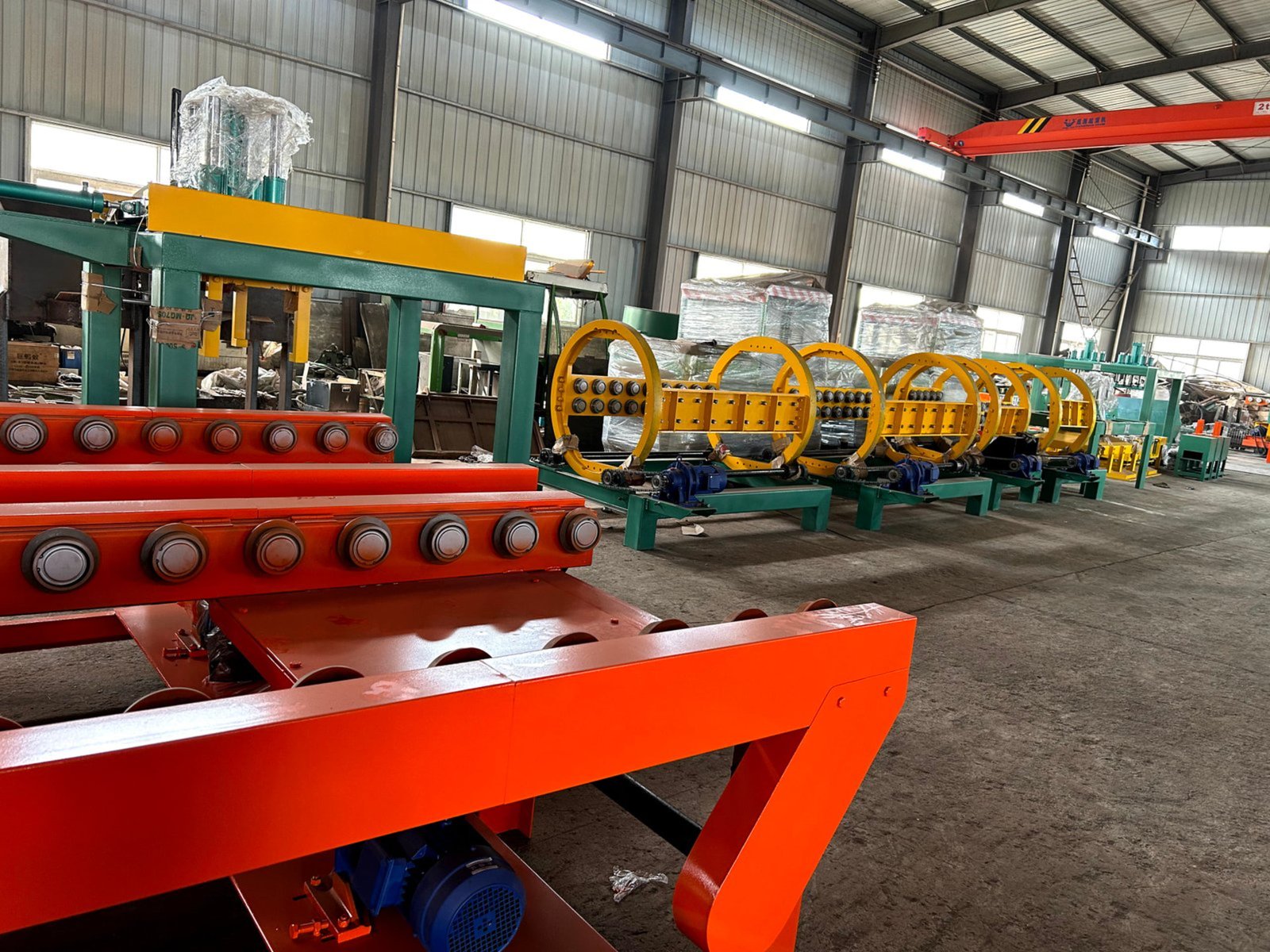

Production Line Gallery
Delivery & Commissioning Phases
From feasibility study to full commissioning, our team supports every phase of your grinding media procurement or production line evaluation.
Feasibility & Specification
Weeks 1–2Confirm technical requirements, ball size, chemical composition, and application needs.
Verified Results
50,000+
Tons Annual Capacity
Casting line output
Let's Discuss What a Production Line in Your Region Would Look Like.
Every project starts with a feasibility discussion. Tell us your region, target capacity, available infrastructure, and timeline.
