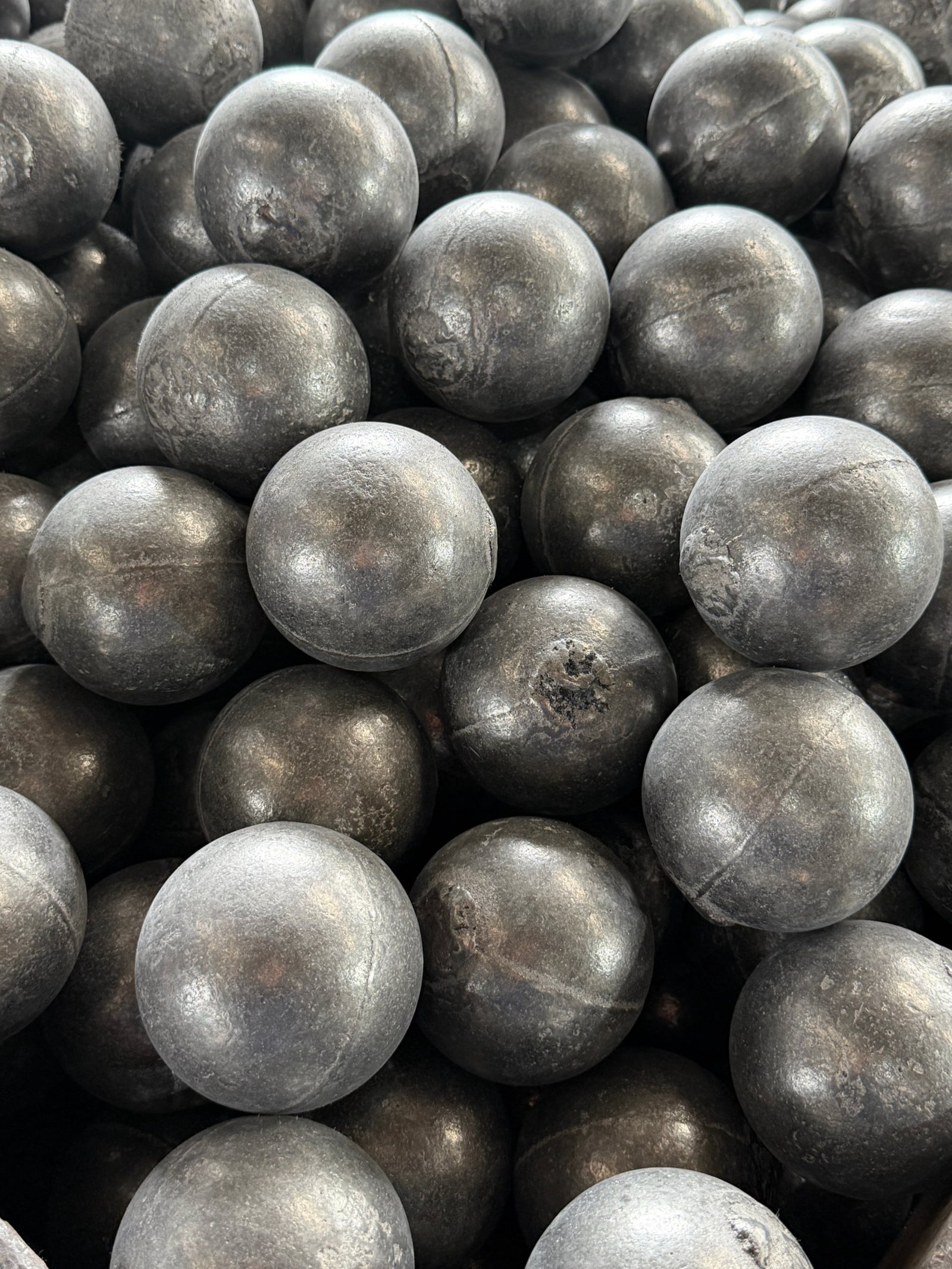

WHY FORGING MATTERS
Casting Creates Balls. Forging Creates Performance.
The mechanical difference between a cast and a forged grinding ball is not a matter of specification — it’s a matter of physics. Forging aligns the grain structure of the steel, eliminating the internal voids and porosity that make cast balls susceptible to fracture under high-impact loading. The result is a ball with fundamentally superior toughness characteristics — not because of chemistry, but because of process.
In SAG mill environments, where steel balls are subjected to repeated high-energy impacts against rock and mill shell, that toughness difference determines whether your media contributes to grinding or contributes to your scats pile.
Alliance manages the full forging and heat treatment process — from billet chemistry verification through final hardness mapping — ensuring that every ball that arrives at your mill was built to perform under your specific loading conditions.
SPECIFICATIONS
Forged Grinding Ball — Specification Matrix
| Parameter | Specification | Notes |
| Manufacturing Process | Hot Forging | Continuous rolling or hammer forging |
| Steel Grade | Medium-to-High Carbon | Customized per application |
| Diameter | Ø25mm – Ø150mm | Common: Ø40, 50, 65, 80, 100, 125mm |
| Surface Hardness | 55 – 65 HRC | Verified by Rockwell mapping |
| Core Hardness | Consistent through cross-section | No soft-core failure mode |
| Breakage Rate | ≤ 1% | Significantly below cast media norms |
| Heat Treatment | Quench + Temper | Real-time curve monitoring |
| Grain Structure | Aligned / Forged | No internal voids or porosity |
FORGED VS. CAST — CHOOSING THE RIGHT MEDIA
When Does Forged Outperform Cast?
When to specify forged media:
- SAG Mill primary charge— high-impact loading demands toughness over pure hardness
- Primary ball mills on hard rock ores— where breakage in cast media creates downstream problems
- Operations experiencing high scats rates— often caused by media fracture, not ore characteristics
- Remote operations— where replacement logistics make breakage events disproportionately costly
- LTA supply environments— forged media offers more predictable consumption rates for long-term planning
When high-chrome cast media may be preferred:
- Secondary and tertiary ball mills— lower impact, higher abrasion profile
- Cement grinding— controlled environment, fine grinding focus
- Cost-per-ton optimization is primary— when ore characteristics allow
Our engineering team will recommend the optimal media type — or combination — for each stage of your grinding circuit. This is a system-level decision, not a product selection.
QUALITY PROTOCOL
The Alliance Standard Applies Here Too.
Every forged ball shipment passes the same 21-Point Alliance Quality Protocol as our high-chrome cast media. Independent spectrometric verification of billet chemistry. Real-time heat treatment monitoring. Full Rockwell hardness mapping — surface and cross-section. CMM dimensional verification. Batch traceability report on delivery.
The forging process eliminates many of the failure modes inherent in casting — but only if the process parameters are controlled correctly. We monitor them. You don’t have to.
